| ·High Performance Scroll |
| ★High efficiency |
| We provide high efficiency compressors by greeter accurate machining, particular assembing and oil seal technology. |
| ★Low sound levels |
| Using un-contact scroll, we have accomplished low sound power level and low vibration. |
| ★High reliability, long operating life |
| Our scroll compressors have fewer movingparts, low reiteration impulsion and low sliding velocity. |
| ★Wide operating voltage range |
| Our compressors are guaranteed within voltage range(±10%) for China market. |
| ★Special value |
| Due to simplifying system design and saving cost, it would enhance your product competivity in market to use DAIKIN compressors. |
|
|

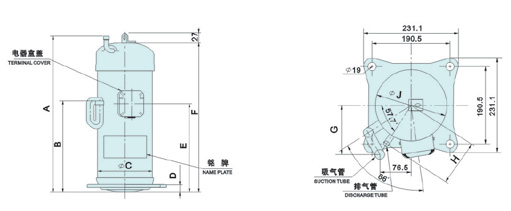

| ·Noninverter Compressor Standard Dimension (Refrigerant R22) |
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
J |
JT90(95)BC(H)BY1L |
448.8 |
260.0 |
156.4 |
20.9 |
262.5 |
445.0 |
110.5 |
102.2 |
164.2 |
JT90(95)BC(H)BV1L |
462.8 |
271.0 |
156.4 |
20.9 |
276.5 |
459.8 |
110.5 |
102.2 |
164.2 |
JT125BCBY1L |
462.3 |
273.0 |
166.1 |
20.8 |
273.0 |
445.8 |
120.1 |
111.7 |
174.0 |
JT125BC-Y1L |
476.3 |
283.0 |
166.1 |
20.8 |
275.5 |
459.8 |
120.1 |
111.7 |
174.0 |
|
|
| ·Noninverter Compressor Range (Refrigerant R22) |
OUTPUT (HP) |
POWER
SOURCE |
MODEL |
PERFORMANCE |
CAPACITY
cm3/r |
TUBE CONNECTIONS |
|
NOMINAL
CAPACITY |
TNPUT KW |
CURRENT A |
COP W/W |
SUCTION TUBE mm |
DISCHARGE TUBE mm |
KW |
BTU/H |
| 3 |
220V/50Hz
1 PHASE |
JT90BCBV1L |
220V/50Hz |
8.54 |
29100 |
2.87 |
13.1 |
2.98 |
48.6 |
Φ22.2 |
Φ9.5 |
| 3 |
JT95BCBV1L |
220V/50Hz |
9.03 |
30800 |
2.98 |
13.7 |
3.03 |
51.2 |
Φ22.2 |
Φ9.5 |
| 3 |
JT100BCBV1L |
220V/50Hz |
9.51 |
32400 |
3.14 |
14.5 |
3.03 |
53.9 |
Φ22.2 |
Φ9.5 |
| 3 |
JT90BHBV1L |
220V/50Hz |
8.55 |
29200 |
2.67 |
12.4 |
3.2 |
48.2 |
Φ22.2 |
Φ9.5 |
| 3 |
JT90BHBV1L |
220V/50Hz |
9.2 |
31400 |
2.88 |
13.5 |
3.2 |
51.8 |
Φ22.2 |
Φ9.5 |
| 3 |
380V/50Hz
3 PHASE |
JT90BCBY1L |
380V/50Hz |
8.54 |
29100 |
2.75 |
4.8 |
3.11 |
48.6 |
Φ19.1 |
Φ9.5 |
| 3 |
JT95BCBY1L |
380V/50Hz |
9.03 |
30800 |
2.87 |
4.9 |
3.15 |
51.2 |
Φ19.1 |
Φ9.5 |
| 3 |
JT90BHBY1L |
380V/50Hz |
8.55 |
29200 |
2.6 |
4.6 |
3.29 |
48.2 |
Φ19.1 |
Φ9.5 |
| 3 |
JT95BHBY1L |
380V/50Hz |
9.2 |
31400 |
2.8 |
4.8 |
3.29 |
51.8 |
Φ19.1 |
Φ9.5 |
| 4.5 |
JT140BCBY1L |
380V/50Hz |
13.2 |
45000 |
4.11 |
7.6 |
3.22 |
74.1 |
Φ19.1 |
Φ9.5 |
| 5 |
JT150BCBY1L |
380V/50Hz |
14 |
47800 |
4.42 |
8.1 |
3.17 |
78.1 |
Φ19.1 |
Φ9.5 |
| 4 |
380V
50/60Hz 3 PHASE |
JT125BC-Y1L |
380V/50Hz |
11.9 |
40600 |
3.8 |
7.0 |
3.13 |
67 |
Φ19.1 |
Φ12.7 |
| 380V/60Hz |
14.2 |
48500 |
4.53 |
7.4 |
3.13 |
| JT125BCBY1L |
380V/50Hz |
11.9 |
40600 |
3.8 |
7.0 |
3.13 |
67 |
Φ19.1 |
Φ12.7 |
| 380V/60Hz |
14.2 |
48500 |
4.53 |
7.4 |
3.13 |
| 5 |
JT160BC-Y1L |
380V/50Hz |
15 |
51200 |
4.66 |
8.6 |
3.22 |
83.1 |
Φ19.1 |
Φ12.7 |
| 380V/60Hz |
17.9 |
61100 |
5.54 |
9.2 |
3.23 |
| JT160BCBY1L |
380V/50Hz |
15 |
51200 |
4.66 |
8.6 |
3.22 |
83.1 |
Φ19.1 |
Φ12.7 |
| 380V/60Hz |
17.9 |
61100 |
5.54 |
9.2 |
3.23 |
| |
TEST CONDITION OF COMPRESSOR |
|
EVAPORATING TEMPERATURE |
CONDENSING TEMPERATURE |
DEGREE OF UNDER COOLING |
DEGREE OF SUPERHEAT |
AMBIENT TEMPERATURE |
COMPRESSOR |
7.2℃ |
54.4℃ |
8.3℃ |
27.8℃ |
35℃ |
|

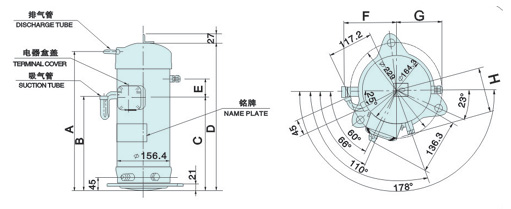

| ·Inverter/Tandem Compressor Standard Dimension (Refrigerant R22) |
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
JT100BAVTYE |
441.6 |
302 |
299.5 |
482 |
52.1 |
140.2 |
114.3 |
108.5 |
JT160BATY1L（YE） |
455.9 |
319.2 |
311.7 |
496 |
65.2 |
136 |
119.2 |
113.4 |
|

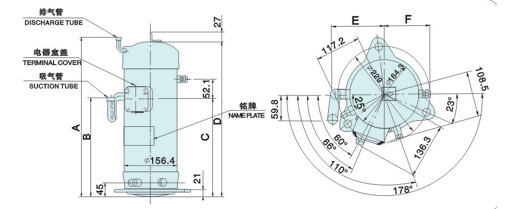

| ·Tandem Compressor Standard Dimension (Refrigerant R22) |
|
型号 MODEL |
A |
B |
C |
D |
E |
F |
JT100BHV(YE) |
451.8 |
263 |
265.5 |
448 |
124.4 |
114.3 |
JT100BATYE |
455.9 |
319.2 |
311.7 |
496 |
65.2 |
136 |
|
| ·B Model Inverter/Tandem Compressor Range (Refrigerant R22) |
OUTPUT (HP) |
POWER
SOURCE |
MODEL |
PERFORMANCE |
CAPACITY
cm3/r |
TUBE CONNECTIONS |
|
NOMINAL
CAPACITY |
TNPUT
KW |
CURRENT
A |
COP
W/W |
SUCTION TUBE
mm |
DISCHARGE TUBE
mm |
KW |
BTU/H |
| 5 |
INVERTER |
JT100BHV |
190V/90Hz |
15.2 |
51800 |
5.84 |
20.9 |
2.6 |
53.9 |
Φ19.1 |
Φ9.5 |
| 5 |
INVERTER |
JT100BHVYE |
383V/90Hz |
15.2 |
51800 |
5.84 |
10.6 |
2.6 |
53.9 |
Φ19.1 |
Φ9.5 |
| 5 |
INVERTER |
JT100BAVTYE |
383V/90Hz |
15.2 |
51800 |
5.84 |
10.6 |
2.6 |
53.9 |
Φ22.2 |
Φ12.7 |
| 5 |
380V/50Hz |
JT100BATYE |
380V/50Hz |
9.34 |
31800 |
2.97 |
5.28 |
3.14 |
53.9 |
Φ19.1 |
Φ12.7 |
| 5 |
380V/50Hz |
JT160BATYE |
380V/50Hz |
15 |
51200 |
4.63 |
8.06 |
3.24 |
83.1 |
Φ19.1 |
Φ12.7 |
| 5 |
380V/50Hz |
JT160BATY1L |
380V/50Hz |
15 |
51200 |
4.66 |
8.6 |
3.22 |
83.1 |
Φ19.1 |
Φ12.7 |
|
|
| |
TEST CONDITION OF COMPRESSOR
|
|
EVAPORATING TEMPERATURE |
CONDENSING TEMPERATURE |
DEGREE OF UNDER COOLING |
DEGREE OF SUPERHEAT |
AMBIENT TEMPERATURE |
COMPRESSOR |
5℃ |
55℃ |
5℃ |
8℃ |
35℃ |
7.2℃ |
54.4℃ |
8.3℃ |
27.8℃ |
35℃ |
|
|
|
