| ·High
Performance Scroll |
| ★ 3 factors in high efficiency |
Proper distribution of suction gas
Asymmetric scroll
Low distortion of fixed scroll |
| ★ 3 factors in high reliability |
Proper coolingof motor
Ball bearing
Dry type journal bearing |
| ★ Application |

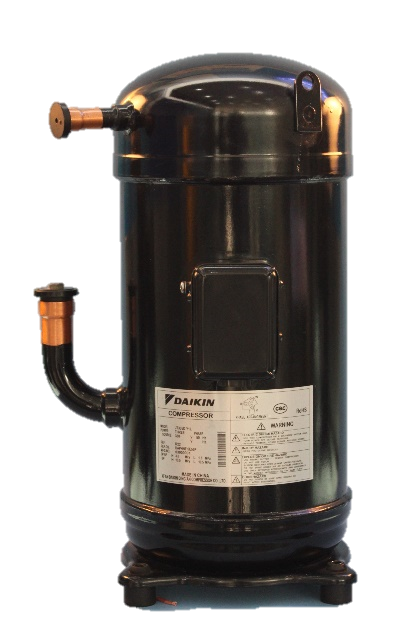

| D model compressors are installed in DAIKIN Air Package Water Chillers. They are ideally used in combination with the Fan Coil Units and/or the Air Handling Units for air conditional of offices, hotels, restaurants and hospitals. |
|
|
|
| ·D Model Standard
Dimension (Refrigerant R22/R407C) |
|
MODEL |
A |
B |
C |
D |
E |
F |
G |

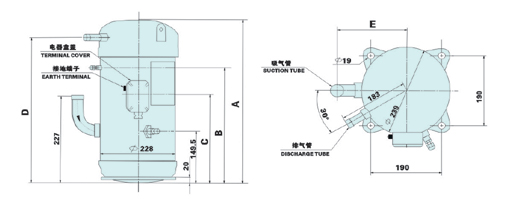

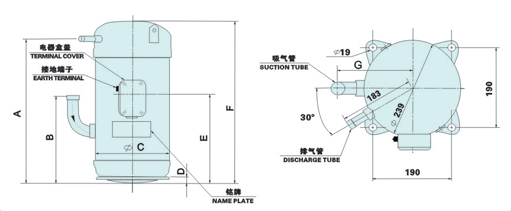

JT212(236)D-YE(Y1L) JT212(236)DA-Y1 |
450 |
277 |
228 |
20 |
275 |
512 |
171.5 |
JT212（236）D-P1YE |
450 |
277 |
228 |
20 |
275 |
554.2 |
171.5 |
JT265-335D-YE(Y1L) JT265-335DA-Y1L(Y1) |
462 |
277 |
228 |
20 |
275 |
524 |
182.5 |
JT265-335D-P1YL |
462 |
277 |
228 |
20 |
275 |
566.2 |
182.5 |
|

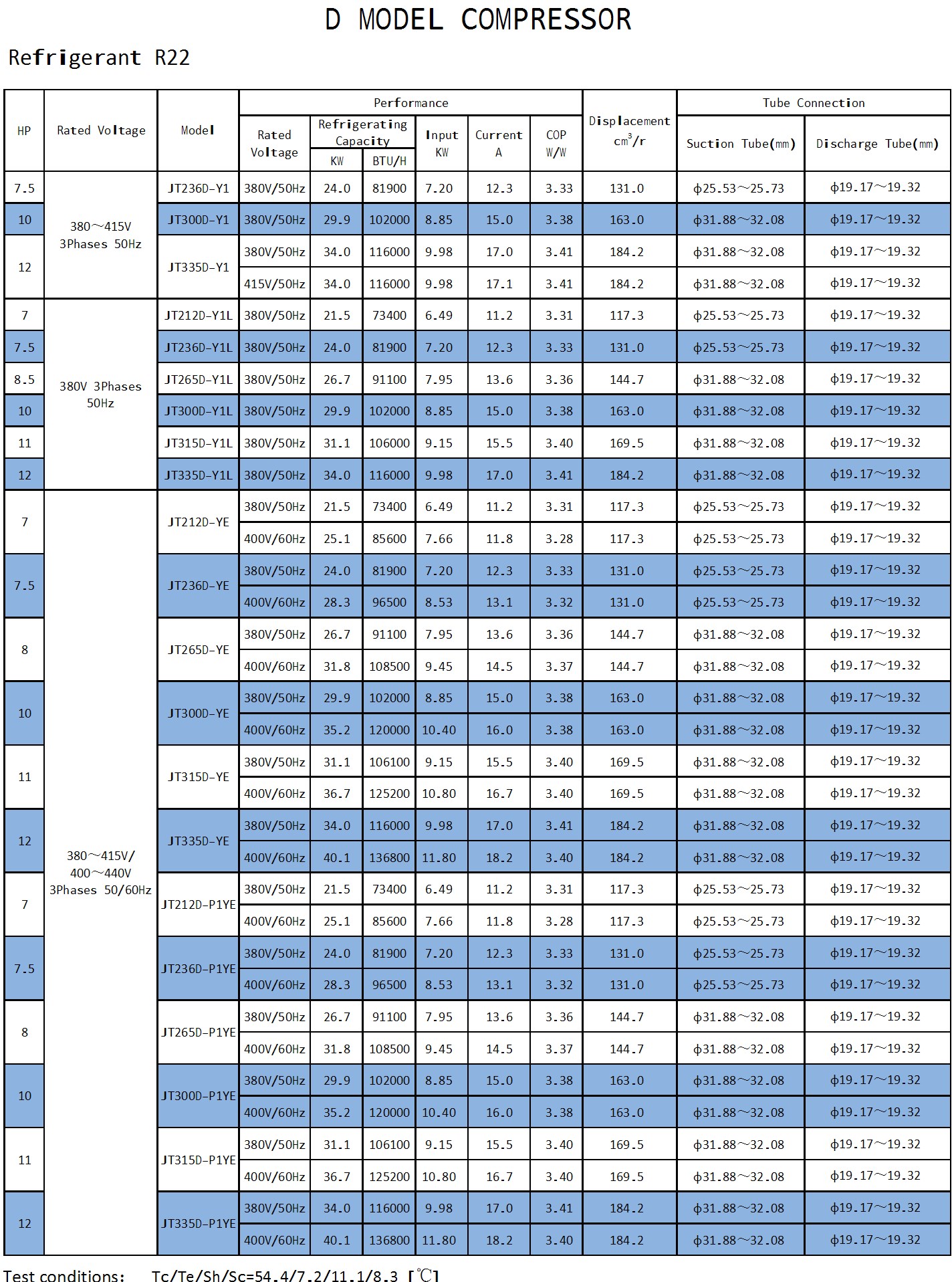

| ·D Model Compressor Range (Refrigerant R22) |
OUTPUT (HP) |
POWER
SOURCE |
MODEL |
PERFORMANCE |
CAPACITY
cm3/r |
TUBE CONNECTIONS |
|
NOMINAL
CAPACITY |
TNPUT
KW |
CURRENT
A |
COP
W/W |
SUCTION TUBE
mm |
DISCHARGE TUBE
mm |
KW |
BTU/H |
| 7 |
380V/50Hz
3 PHASE |
JT212D-Y1L |
380V/50Hz |
21.3 |
73400 |
6.56 |
11.3 |
3.25 |
117.3 |
Φ25.4 |
Φ19.1 |
| 7.5 |
JT236D-Y1L |
380V/50Hz |
23.8 |
81900 |
7.27 |
12.4 |
3.27 |
131 |
Φ25.4 |
Φ19.1 |
| 8.5 |
JT265D-Y1L |
380V/50Hz |
26.5 |
91100 |
8.03 |
13.7 |
3.3 |
144.7 |
Φ31.8 |
Φ19.1 |
| 10 |
JT300D-Y1L |
380V/50Hz |
29.6 |
102000 |
8.94 |
15.2 |
3.31 |
163 |
Φ31.8 |
Φ19.1 |
| 11 |
JT315D-Y1L |
380V/50Hz |
30.8 |
106200 |
9.24 |
15.7 |
3.33 |
169.5 |
Φ31.8 |
Φ19.1 |
| 12 |
JT335D-Y1L |
380V/50Hz |
33.7 |
116000 |
10.08 |
17.2 |
3.34 |
184.2 |
Φ31.8 |
Φ19.1 |
| 7 |
380-415V/
400-440V 3 PHASE 50/60Hz |
JT212D-YE |
380V/50Hz |
21.3 |
73400 |
6.56 |
11.3 |
3.25 |
117.3 |
Φ25.4 |
Φ19.1 |
| 400V/60Hz |
24.9 |
85700 |
7.74 |
11.9 |
3.22 |
| 7.5 |
JT236D-YE |
380V/50Hz |
23.8 |
81900 |
7.27 |
12.4 |
3.27 |
131 |
Φ25.4 |
Φ19.1 |
| 400V/60Hz |
28.1 |
96600 |
8.62 |
13.2 |
3.26 |
| 8.5 |
JT265D-YE |
380V/50Hz |
26.5 |
91100 |
8.03 |
13.7 |
3.3 |
144.7 |
Φ31.8 |
Φ19.1 |
| 400V/60Hz |
31.5 |
108500 |
9.55 |
14.6 |
3.3 |
| 10 |
JT300D-YE |
380V/50Hz |
29.6 |
102000 |
8.94 |
15.2 |
3.31 |
163 |
Φ31.8 |
Φ19.1 |
| 400V/60Hz |
34.9 |
120200 |
10.51 |
16.2 |
3.32 |
| 12 |
JT335D-YE |
380V/50Hz |
33.7 |
116000 |
10.08 |
17.2 |
3.34 |
184.2 |
Φ31.8 |
Φ19.1 |
| 400V/60Hz |
39.4 |
136900 |
11.92 |
18.4 |
3.34 |
| 7 |
JT212D-P1YE |
380V/50Hz |
21.3 |
73400 |
6.56 |
11.3 |
3.25 |
117.3 |
Φ25.4 |
Φ19.1 |
| 400V/60Hz |
24.9 |
85700 |
7.74 |
11.9 |
3.22 |
| 7.5 |
JT236D-P1YE |
380V/50Hz |
23.8 |
81900 |
7.27 |
12.4 |
3.27 |
131 |
Φ25.4 |
Φ19.1 |
| 400V/60Hz |
28.1 |
96600 |
8.62 |
13.2 |
3.26 |
| 8.5 |
JT265D-P1YE |
380V/50Hz |
26.5 |
91100 |
8.03 |
13.7 |
3.3 |
144.7 |
Φ31.8 |
Φ19.1 |
| 400V/60Hz |
31.5 |
108500 |
9.55 |
14.6 |
3.3 |
| 10 |
JT300D-P1YE |
380V/50Hz |
29.6 |
102000 |
8.94 |
15.2 |
3.31 |
163 |
Φ31.8 |
Φ19.1 |
| 400V/60Hz |
34.9 |
120200 |
10.51 |
16.2 |
3.32 |
| 12 |
JT335D-P1YE |
380V/50Hz |
33.7 |
116000 |
10.08 |
17.2 |
3.34 |
184.2 |
Φ31.8 |
Φ19.1 |
| 400V/60Hz |
39.4 |
136900 |
11.92 |
18.4 |
3.34 |
| |
TEST CONDITION OF COMPRESSOR
|
|
EVAPORATING TEMPERATURE |
CONDENSING TEMPERATURE |
DEGREE OF UNDER COOLING |
DEGREE OF SUPERHEAT |
AMBIENT TEMPERATURE |
COMPRESSOR |
7.2℃ |
54.4℃ |
8.3℃ |
11.1℃ |
35℃ |
|

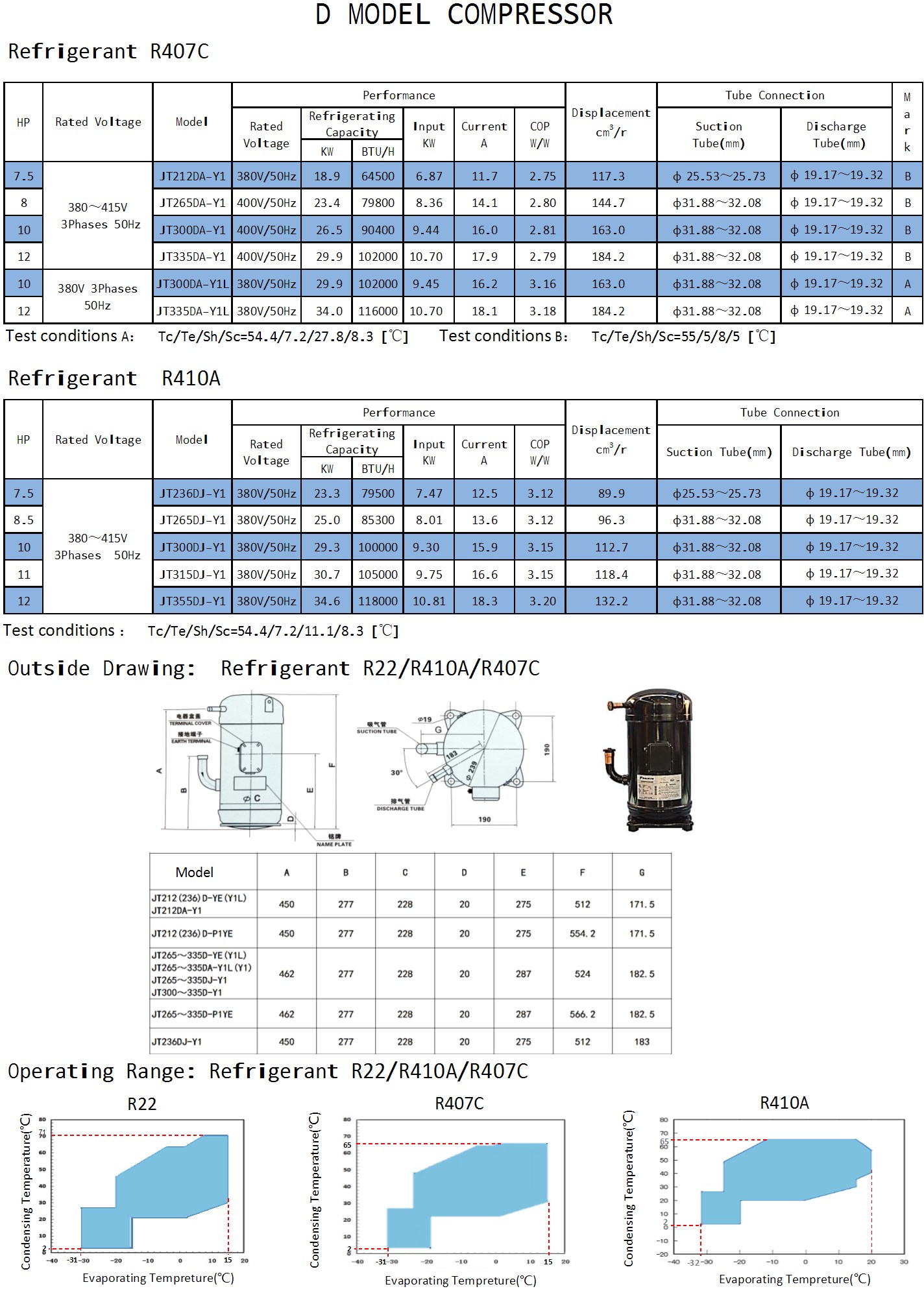

| ·D Model Compressor Range (Refrigerant R407C) |
OUTPUT (HP) |
POWER
SOURCE |
MODEL |
PERFORMANCE |
CAPACITY
cm3/r |
TUBE CONNECTIONS |
|
NOMINAL
CAPACITY |
TNPUT
KW |
CURRENT
A |
COP
W/W |
SUCTION TUBE
mm |
DISCHARGE TUBE
mm |
KW |
BTU/H |
| 7 |
380-415V
3 PHASE 50Hz |
JT212DA-Y1 |
380V/50Hz |
18.9 |
64500 |
6.87 |
11.7 |
2.75 |
117.3 |
Φ25.4 |
Φ19.1 |
| 8.5 |
380-415V
3 PHASE 50Hz |
JT265DA-Y1 |
400V/50Hz |
23.4 |
79800 |
8.36 |
14.1 |
2.8 |
144.7 |
Φ31.8 |
Φ19.1 |
| 10 |
380-415V
3 PHASE 50Hz |
JT300DA-Y1 |
400V/50Hz |
26.5 |
90400 |
9.44 |
16 |
2.81 |
163 |
Φ31.8 |
Φ19.1 |
| 12 |
380-415V
3 PHASE 50Hz |
JT335DA-Y1 |
400V/50Hz |
29.9 |
102000 |
10.7 |
17.9 |
2.79 |
184.2 |
Φ31.8 |
Φ19.1 |
| 10 |
380V
3 PHASE 50Hz |
JT300DA-Y1L |
380V/50Hz |
29.6 |
101000 |
9.55 |
16.4 |
3.1 |
163 |
Φ31.8 |
Φ19.1 |
| 12 |
380V
3 PHASE 50Hz |
JT335DA-Y1L |
380V/50Hz |
33.7 |
115000 |
10.81 |
18.3 |
3.12 |
184.2 |
Φ31.8 |
Φ19.1 |
| |
TEST CONDITION OF COMPRESSOR
|
|
EVAPORATING TEMPERATURE |
CONDENSING TEMPERATURE |
DEGREE OF UNDER COOLING |
DEGREE OF SUPERHEAT |
AMBIENT TEMPERATURE |
COMPRESSOR |
7.2℃ |
54.4℃ |
8.3℃ |
11.1℃ |
35℃ |
5℃ |
55℃ |
8℃ |
5℃ |
35℃ |
|
| ·D Model Tandem Compressor Standard
Dimension (Refrigerant R22) |
|
|
- Capacity Range：7HP—12HPFree Connection
- Reliable and Simple Oil Blance Design
|
|
|
|
MODEL |
A |
B |
C |
D |
E |
JT212(236)D-TY1L(YE) |
512 |
328 |
275 |
450 |
171.5 |
JT265(300,335)-TY1L（YE） |
524 |
340 |
287 |
462 |
182.5 |
|
| ·D Model Tandem Compressor Range (Refrigerant R22) |
OUTPUT (HP) |
POWER
SOURCE |
MODEL |
PERFORMANCE |
CAPACITY
cm3/r |
TUBE CONNECTIONS |
|
NOMINAL
CAPACITY |
TNPUT
KW |
CURRENT
A |
COP
W/W |
SUCTION TUBE
mm |
DISCHARGE TUBE
mm |
KW |
BTU/H |
| 7 |
380V/50Hz
3 PHASE |
JT212D-TY1L |
380V/50Hz |
21.3 |
73400 |
6.56 |
11.3 |
3.25 |
117.3 |
Φ25.4 |
Φ19.1 |
| 7.5 |
JT236D-TY1L |
380V/50Hz |
23.8 |
81900 |
7.27 |
12.4 |
3.27 |
131 |
Φ25.4 |
Φ19.1 |
| 8.5 |
JT265D-TY1L |
380V/50Hz |
26.5 |
91100 |
8.03 |
13.7 |
3.3 |
144.7 |
Φ31.8 |
Φ19.1 |
| 10 |
JT300D-TY1L |
380V/50Hz |
29.6 |
102000 |
8.94 |
15.2 |
3.31 |
163 |
Φ31.8 |
Φ19.1 |
| 11 |
JT315D-TY1L |
380V/50Hz |
30.8 |
106200 |
9.24 |
15.7 |
3.33 |
169.5 |
Φ31.8 |
Φ19.1 |
| 12 |
JT335D-TY1L |
380V/50Hz |
33.7 |
116000 |
10.08 |
17.2 |
3.34 |
184.2 |
Φ31.8 |
Φ19.1 |
| 7 |
380-415V/
400-440V
3 PHASE 50/60Hz |
JT212D-TYE |
380V/50Hz |
21.3 |
73400 |
6.56 |
11.3 |
3.25 |
117.3 |
Φ25.4 |
Φ19.1 |
| 400V/60Hz |
24.9 |
85700 |
7.74 |
11.9 |
3.22 |
| 7.5 |
JT236D-TYE |
380V/50Hz |
23.8 |
81900 |
7.27 |
12.4 |
3.27 |
131 |
Φ25.4 |
Φ19.1 |
| 400V/60Hz |
28.1 |
96600 |
8.62 |
13.2 |
3.26 |
| 8.5 |
JT265D-TYE |
380V/50Hz |
26.5 |
91100 |
8.03 |
13.7 |
3.3 |
144.7 |
Φ31.8 |
Φ19.1 |
| 400V/60Hz |
31.5 |
108500 |
9.55 |
14.6 |
3.3 |
| 10 |
JT300D-TYE |
380V/50Hz |
29.6 |
102000 |
8.94 |
15.2 |
3.31 |
163 |
Φ31.8 |
Φ19.1 |
| 400V/60Hz |
34.9 |
120200 |
10.51 |
16.2 |
3.32 |
| 12 |
JT335D-TYE |
380V/50Hz |
33.7 |
116000 |
10.08 |
17.2 |
3.34 |
184.2 |
Φ31.8 |
Φ19.1 |
| 400V/60Hz |
39.4 |
136900 |
11.92 |
18.4 |
3.34 |
|
|
| |
TEST CONDITION OF COMPRESSOR
|
|
EVAPORATING TEMPERATURE |
CONDENSING TEMPERATURE |
DEGREE OF UNDER COOLING |
DEGREE OF SUPERHEAT |
AMBIENT TEMPERATURE |
| COMPRESSOR |
7.2℃ |
54.4℃ |
8.3℃ |
27.8℃ |
35℃ |
|
|
|
|
