  Your Location：Home >> Products >> Multi-paralleled Model
·High Performance Scroll
★ Controlling Capacity Efficiently ★ Freely Assembled ★ Reducing Starting Load
★ Low Replacement Charge ★ Standby Performance ★ Increasing Reliability

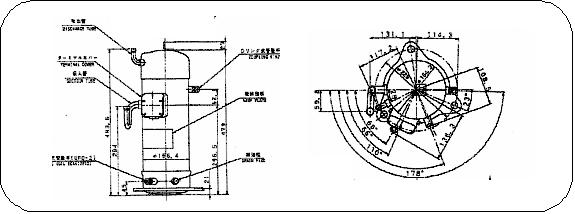

 ·Standard Dimension (JT100BAVTYE)

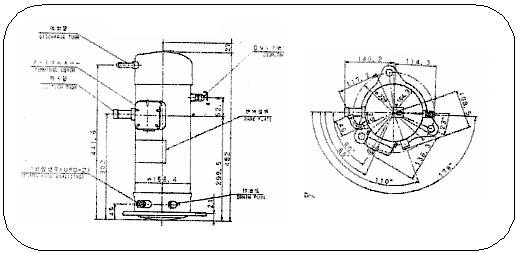

 ·Standard Dimension(JT100BATYE)

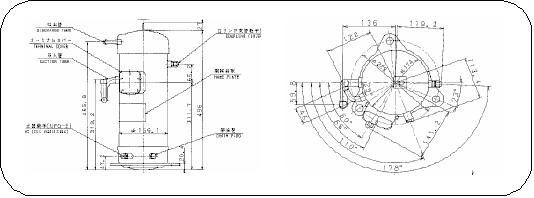

 ·Standard Dimension(JT160BATY1L（YE）)

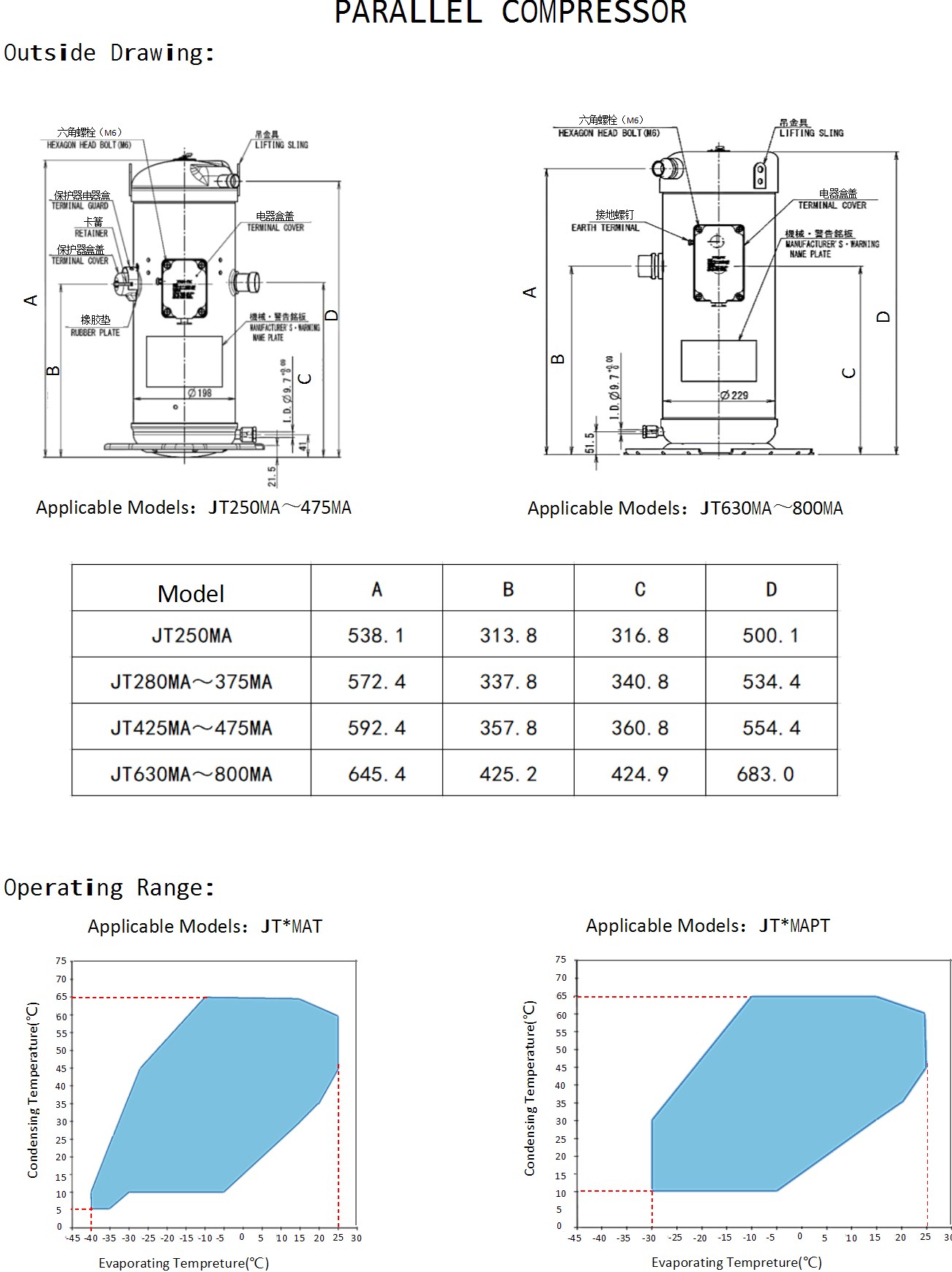

 ·Standard Dimension(D Model)
MODEL
A
B
C
D
E
JT212(236)D-TY1L
512
328
275
450
171.5
JT265(300,335)D-TY1L
524
340
287
462
182.5

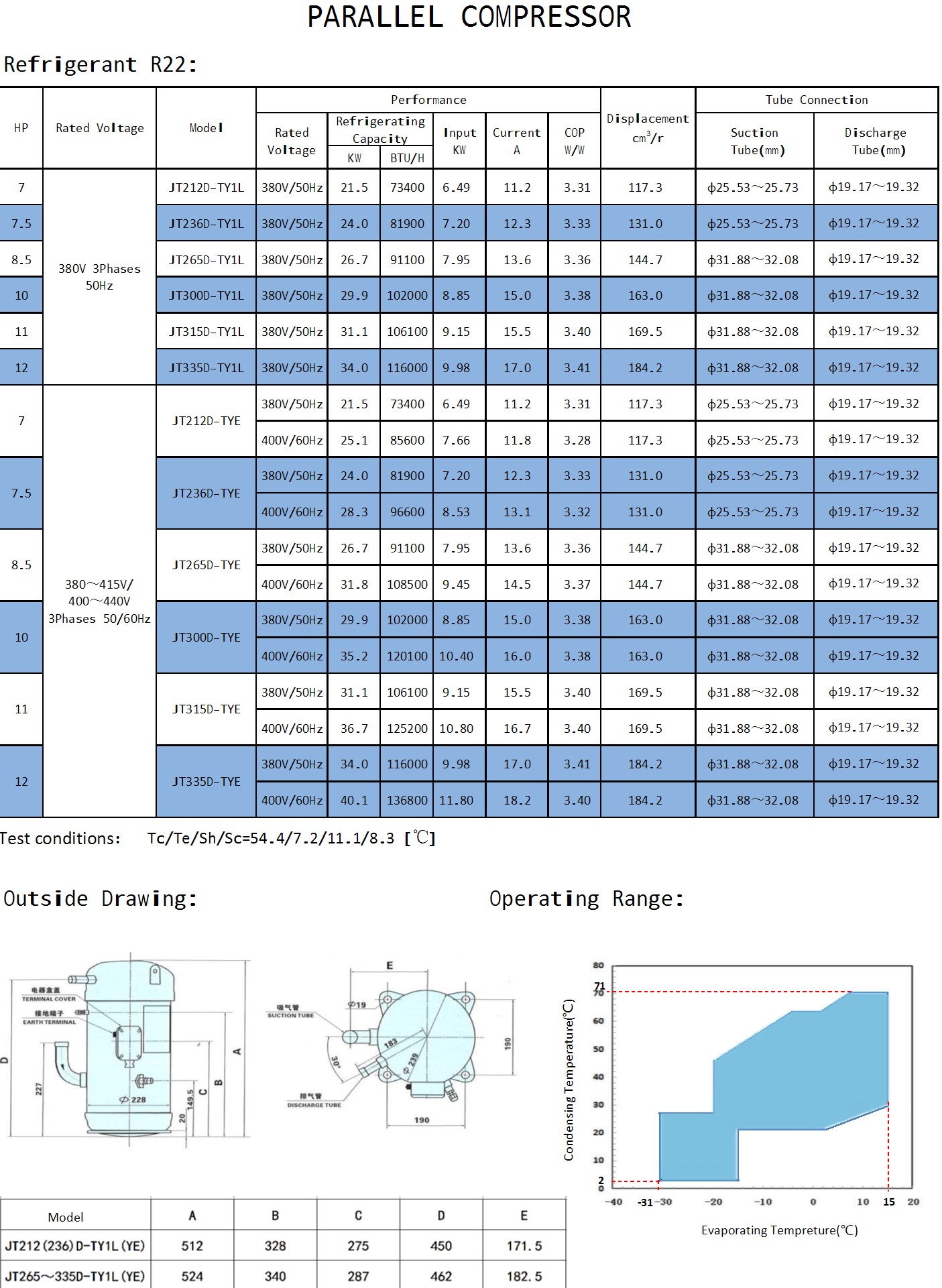

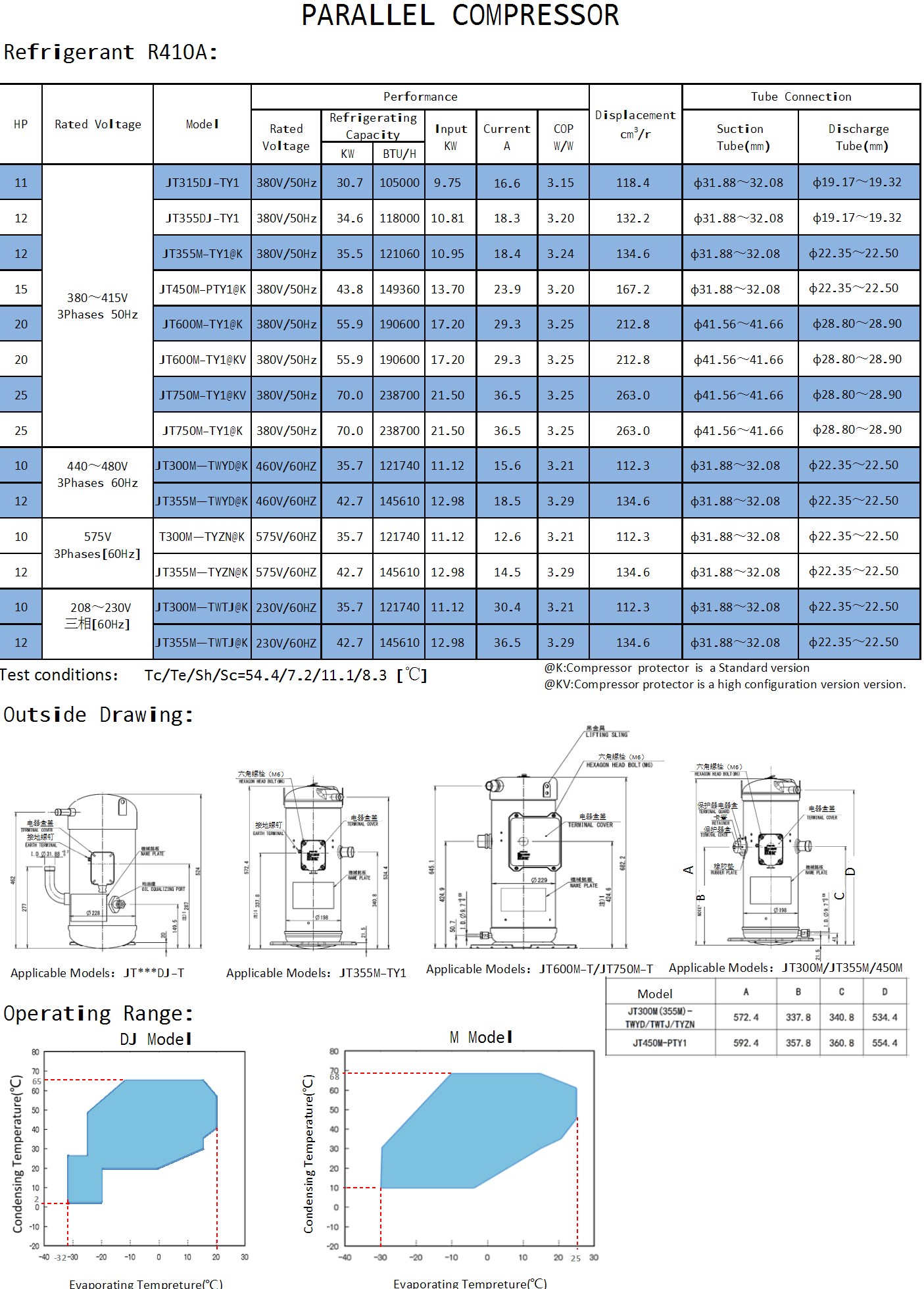

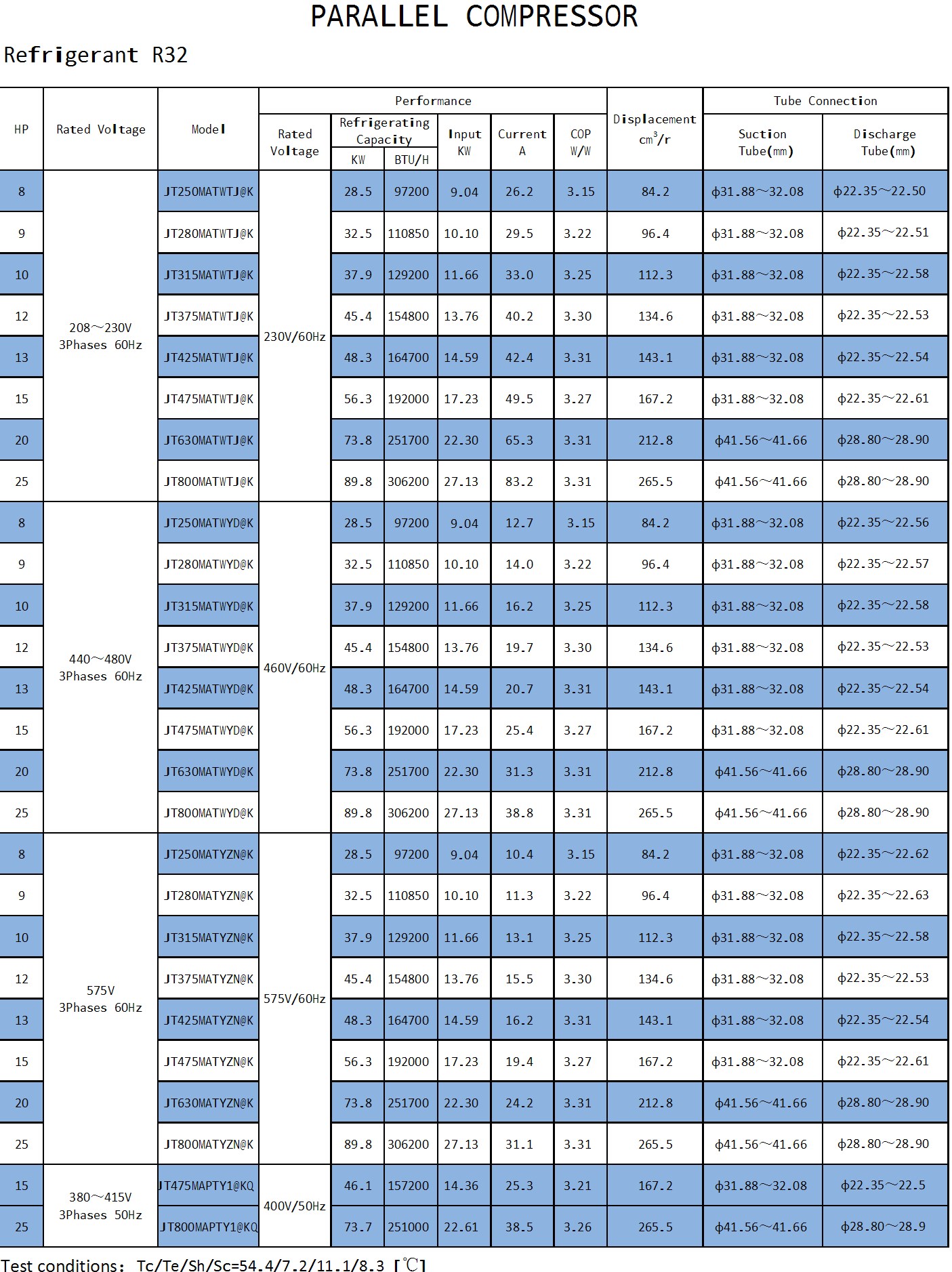

       >>Multi-paralleled Model
MODEL
OUTPUT
(HP)
POWER
SOURCE
(V/Hz)

PERFORMANCE

TUBE CONNECTIONS

NETWEIGHT
INCLUDING 0IL
(Kg)
NOMINAL
CAPACITY
(W)

INPUT
(kW)
COP
(W/W)

dB(A)

SUCTION TUBE
mm

DISCHARGE TUBE
mm
JT100BAVTYE
5
383/90
15200
5.84
2.60
77below
22.2
φ 12.7
32.4
JT100BATYE
3
380/50
9340
2.97
3.14
58
φ 19.1
φ 12.7
32.1
JT160BATYE
5
380/50
15000
4.63
3.24
65below
φ 19.1
φ 12.7
36.5
JT160BATY1L
5
380/50
15000
4.66
3.22
62
φ 19.1
φ 12.7
36.2
JT212D-TY1L
7
380/50
21500
6.49
3.31
72
φ 25.4
φ 19.1
66
JT236D-TY1L
7.5
380/50
24000
7.20
3.33
72
φ 25.4
φ 19.1
67
JT265D-TY1L
8
380/50
24700
7.95
3.36
72
φ 31.8
φ 19.1
68
JT300D-TY1L
10
380/50
29900
8.85
3.38
72
φ 31.8
φ 19.1
69
JT335D-TY1L
12
380/50
34000
9.98
3.41
72
φ 31.8
φ 19.1
71
